Benefits for you:

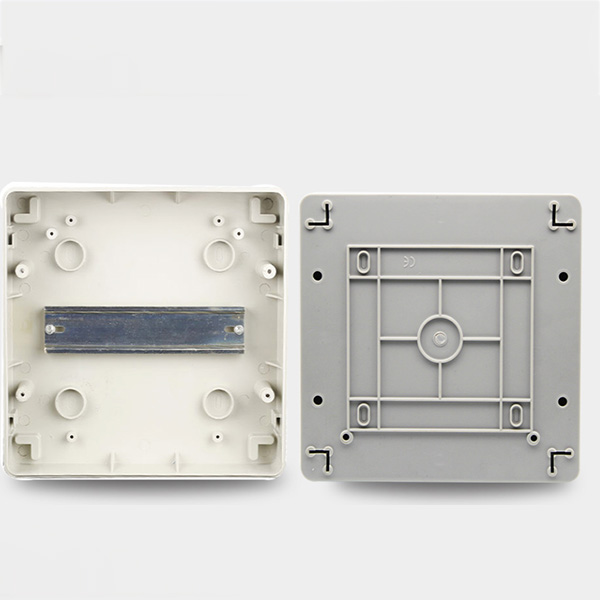

1. The guide rail on the internal base can horizontally fix the circuit breaker or other electrical components.
2. Higher intensity, and more durable.
3. Open cover left and right.
4. Design press to open the lid.

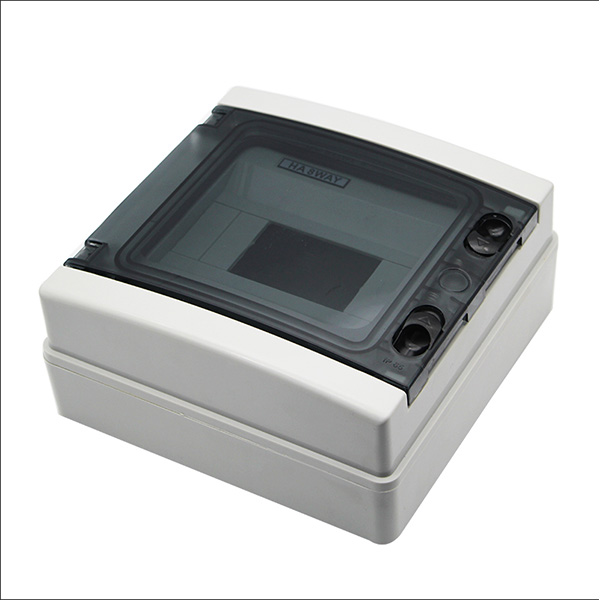

Short introduction: | Plastic distribution box, color white, surface-mounted box. Details: 1)Outdoor waterproof distribution box, waterproof, sunscreen, dustproof. 2)Open window design, the lid can be opened by pressing the button with both hands. 3)The inside of the box is equipped with guide rails. 4)The transparent cover can see the components inside the enclosure, whether it is safe. 5)Sealing ring made of polyacid material, corrosion-resistant and waterproof. 6)Wide range of applications. Housing, factories, workshops, airports, cruise ships. |
Product description | Color white |
Body material ABS, Lid material PC | |

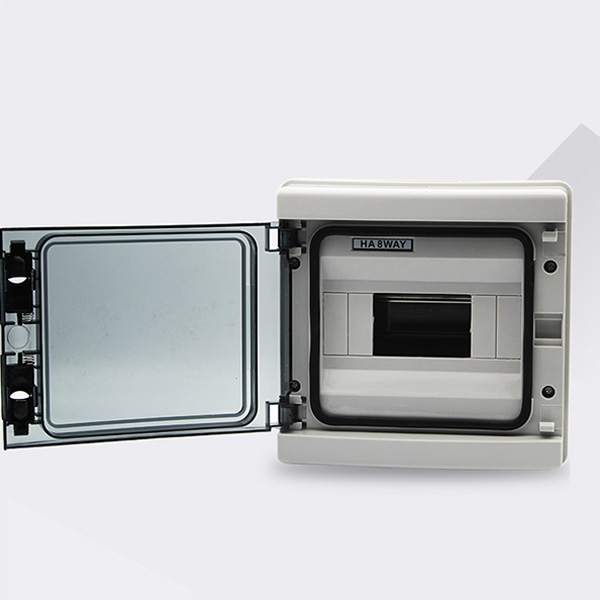

Frosted transparent lid with side opening | |
Waterproof sealing ring | |
Box protection level (IP) IP65 | |
Working temperature -25°C--90°C | |
Warranty period, month | 12 |
Packaging Details | Standard export packing |
Port | Ningbo/Shanghai China |
Technical parameters

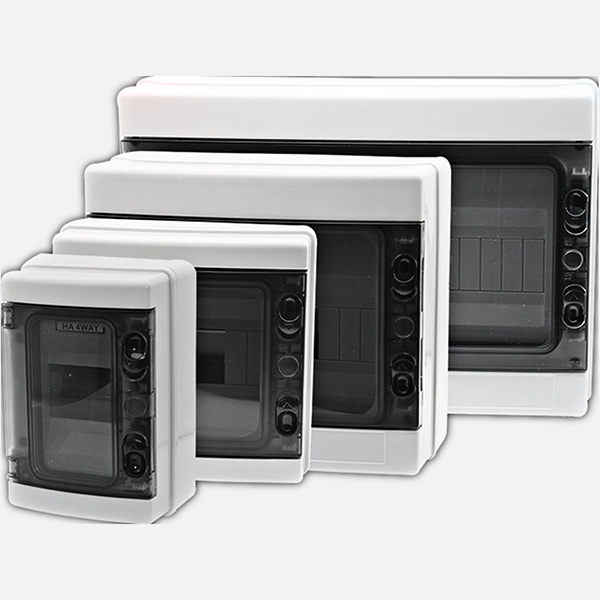

Description | Model | Dimensions(mm) W×L×H | Qty of Modules | Features |

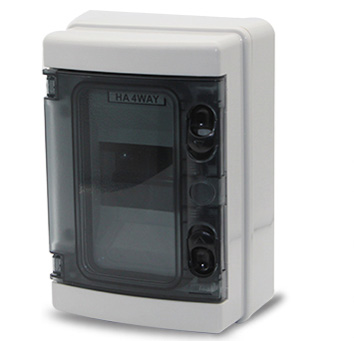

MD-HA4 | 140×210×100 | 4 Ways | Weight:0.52KG/PCS | |
Package:30PCS/CTN | ||||
MD-HA8 | 215×210×100 | 8 Ways | Weight:0.78KG/PCS | |
Package:20PCS/CTN | ||||
MD-HA12 | 300×260×140 | 12 Ways | Weight:1.46KG/PCS | |
Package:10PCS/CTN | ||||
MD-HA18 | 410×285×140 | 18 Ways | Weight:1.93KG/PCS | |
Package:5PCS/CTN | ||||
MD-HA24 | 300×415×140 | 24 Ways | Weight:2.34KG/PCS | |
Package:5PCS/CTN |
