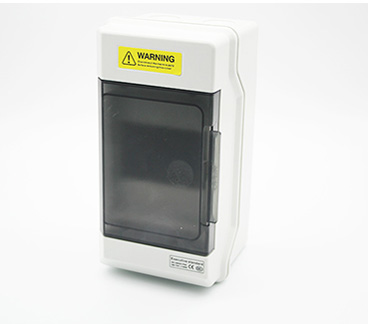

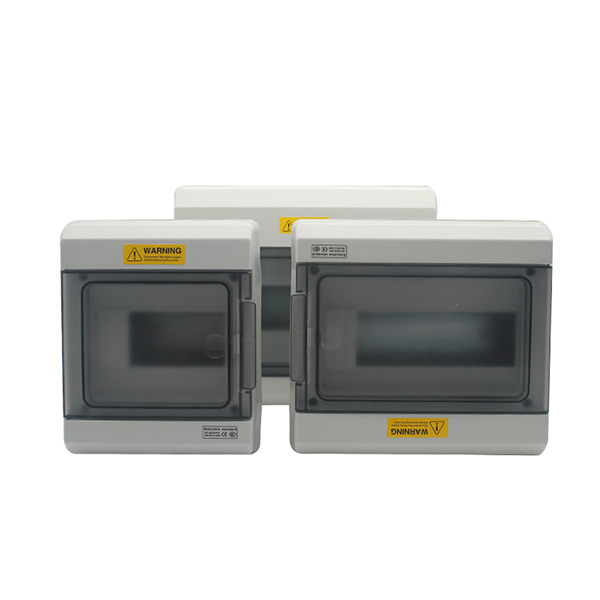

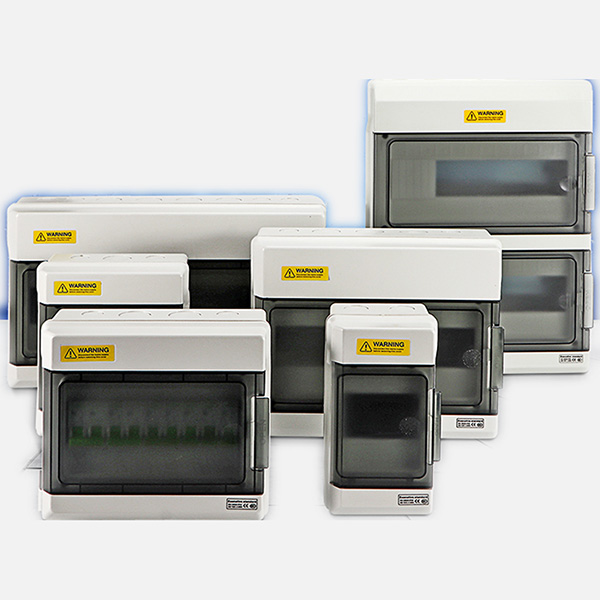

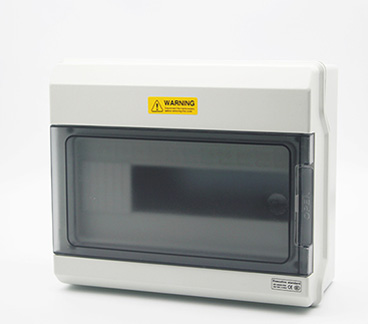

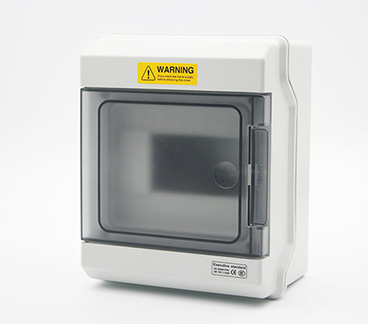

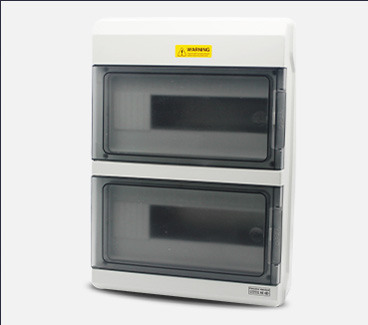

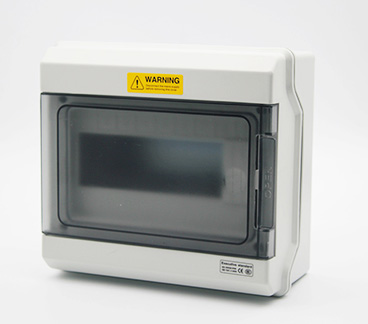

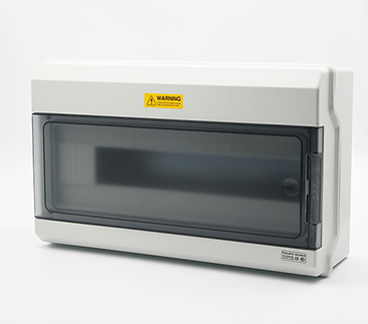

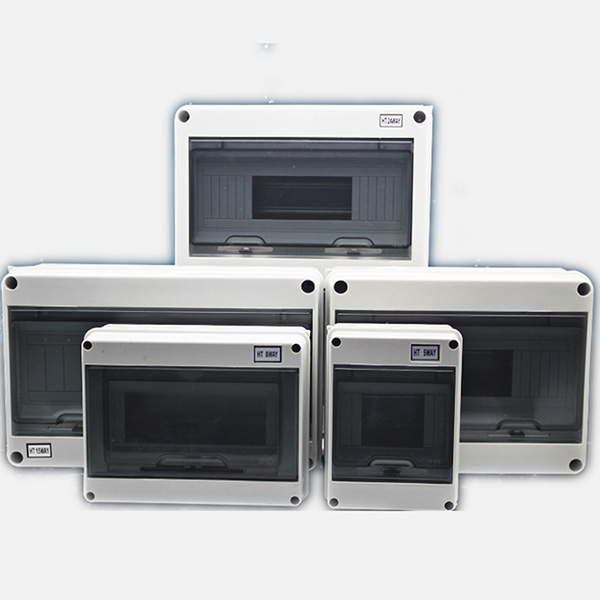

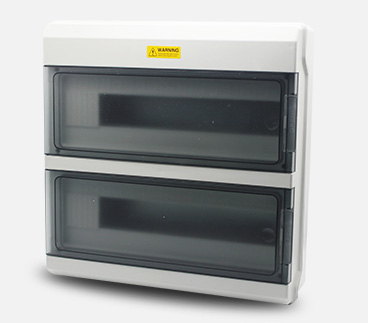

Outdoor waterproof distribution boxes

  • Features
  • Accessories

Benefits for you:

1. The guide rail on the internal base can horizontally fix the circuit breaker or other electrical components.

2. Higher intensity, and more durable.

3. Open cover left and right.

4. Color can be changed as your requirement.


Short introduction:Plastic distribution box, color white, surface-mounted box.
Details:

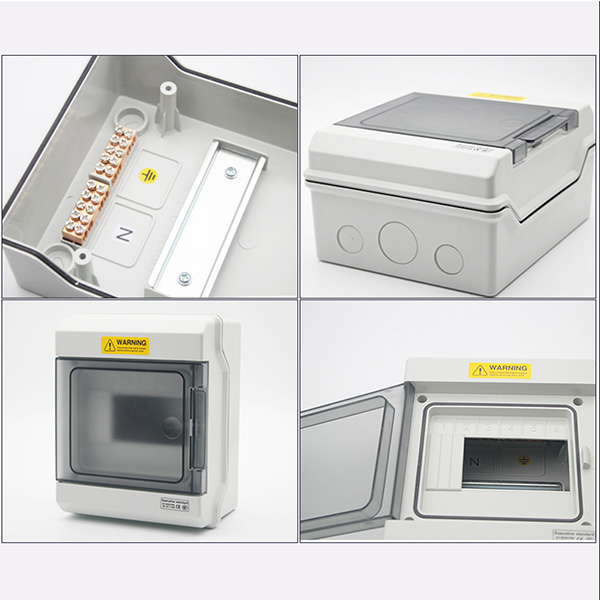

1)Outdoor waterproof distribution box, waterproof, sunscreen, dustproof.
2)The inside of the box is equipped with guide rails and grounding terminals.

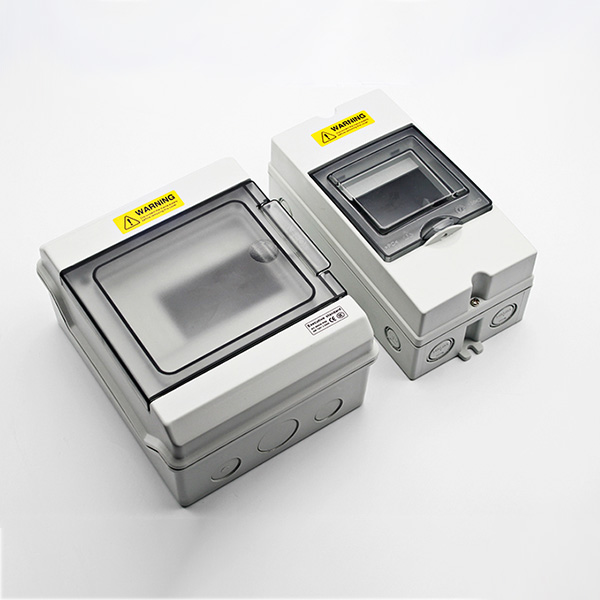

3)There are reserved holes on the side of the box for easy cable entry and exit.
4)The transparent cover can see the components inside the enclosure, whether it is safe.
5)There is a waterproof sealing ring in the box, so that the water has nowhere to drill.
6)Wide range of applications. Housing, factories, workshops, airports, cruise ships.
Product descriptionColor white
Body material PC flame retardant material

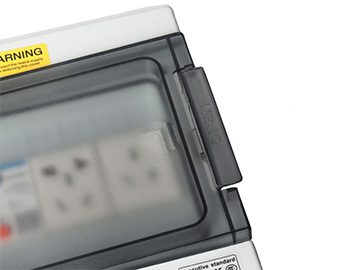

Frosted transparent lid with side opening
Waterproof sealing ring
Box protection level (IP) IP65
Working temperature -25°C--90°C
Packaging DetailsStandard export packing
PortNingbo/Shanghai China

Technical parameters

ModelDimensions(mm)
W×L×H
Qty of ModulesDescription
MD-DB-150499×200×1014 WaysOutdoor waterproof distribution box
MD-DB-1506165×200×1006 WaysOutdoor waterproof distribution box
MD-DB-1509219×200×1009 WaysOutdoor waterproof distribution box
MD-DB-1512273×230×11012 WaysOutdoor waterproof distribution box
MD-DB-1518381×230×11018 WaysOutdoor waterproof distribution box
MD-DB-1524273×380×11024 WaysOutdoor waterproof distribution box
MD-DB-1536381×380×11036 WaysOutdoor waterproof distribution box
