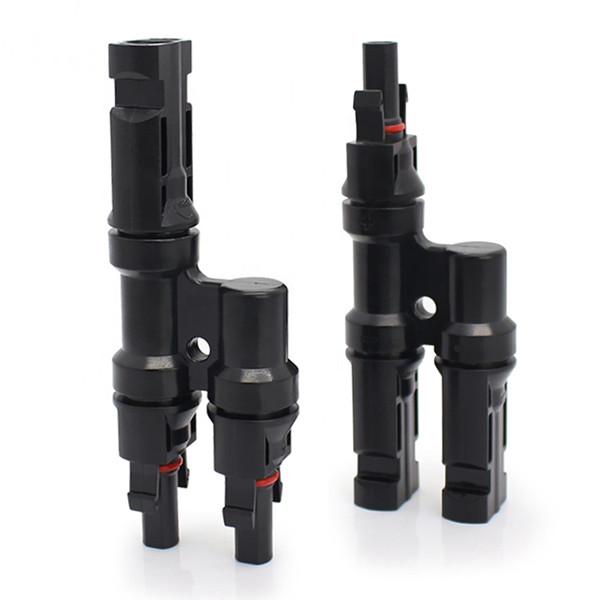

Ip67 Waterproof Seal Micro Solar Panel Cable Connector
| Model | MD-MC4 pv connector |
| Rated voltage | 1000V DC |
| Rated impulse voltage | 6kV |
| AmbienT temp, range | -40°C~+125°C |
| Degree of protection(mated) | IP67 |
| Protection class | II |
| Contact resistance of plug connectors | ≤5mΩ |
| Contact material | Copper Alloy.tin plated |
| Insulation material | PC/PPO |
| Locking system | Snap-in |
| Flame class | UL-94-V0 |
Product Details
1) IP67 Water-Proof IP Rating
2) Easy to assemble,Simple on-site processing.
3) 100% new PPO Material
4) Insulation Component
5) Copper material ,Tinned appearance
6) Low resistance ,corrosion resistance
7) Beautiful appearance ,Ce and CCC certification
8) High current carrying capacity. INSULATING ELEMENTS, PREVENT ELECTRIC SHOCK The contactor head parts provided a guide insulator,which is guiding and preventing electric shock
9) STABLE SELF- LOCKING MECHANISM The joint adopts compression mode to connect, the male and female head parts with self-locking mechanism, which can open and close freely.
