SPECIFICATION

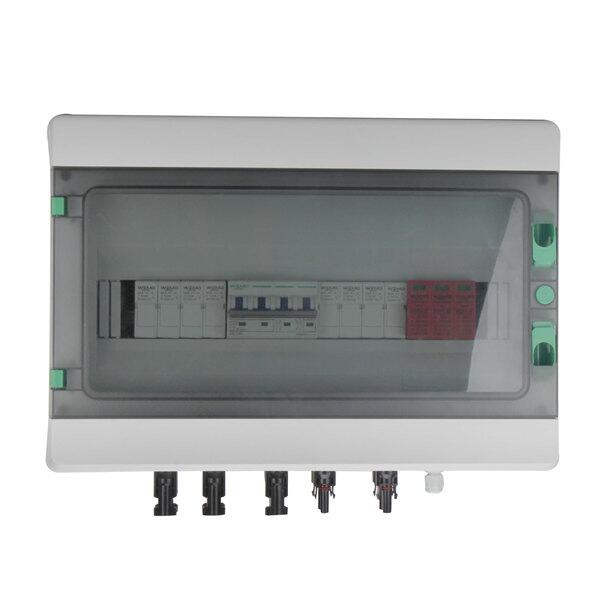

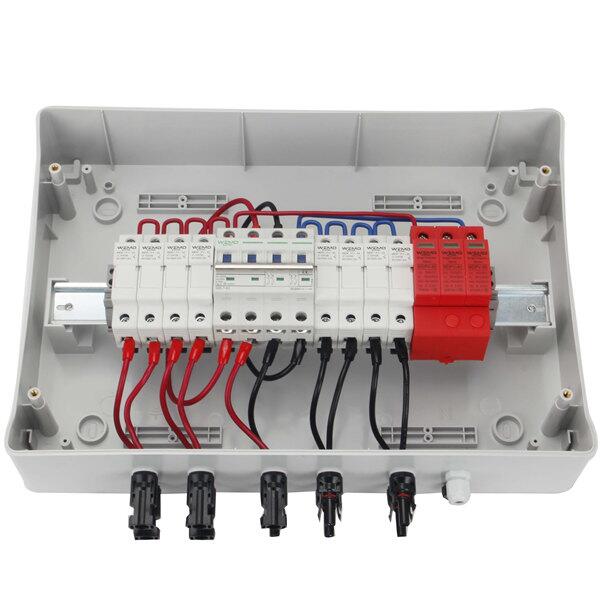

IP65 DC string box is designed for 4 strings PV system
Technical parameters
| Product Name | DC combiner box |
| Model Code | MDB-PV4/1 |
| Rated Voltage | 1000V |
| Input | 4 strings |
| Output | 1 string |
| Temperature range | -25℃~+60℃ |
| Enclosure | |
| IP Protection Class | IP65 |
| Materials | Polycarbonate / ABS |
| Spec | UV resistance and Flame retardant |
| DC switch | |
| Rated Voltage | 1200V |
| Rated Current | 25A |
| DC SPD | |
| Max Operating Voltage | 1000V |
| Max Discharge Current | 40KA |
| Nominal discharge current | 20KA |
| DC Fuse | |
| Rated Voltage | 1000V |
| Fuse | 15A 10×38MM |
| LED indicator | Available |
