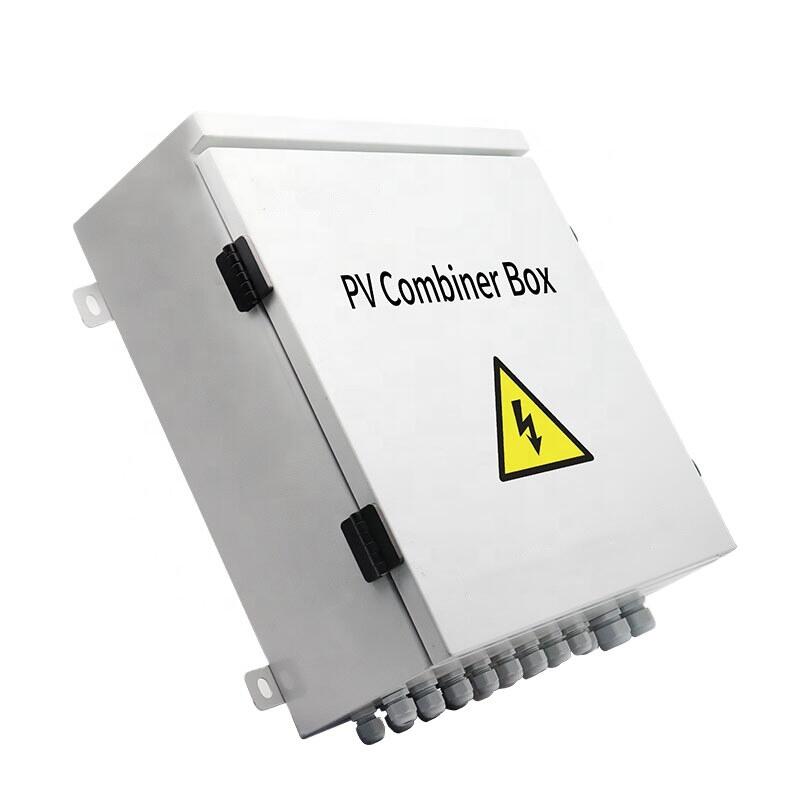

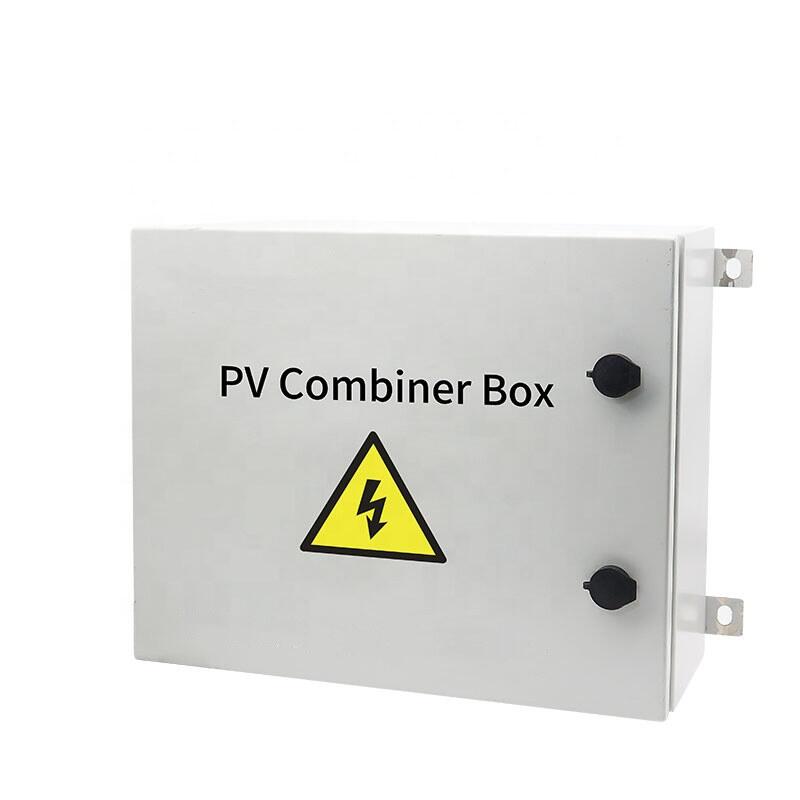

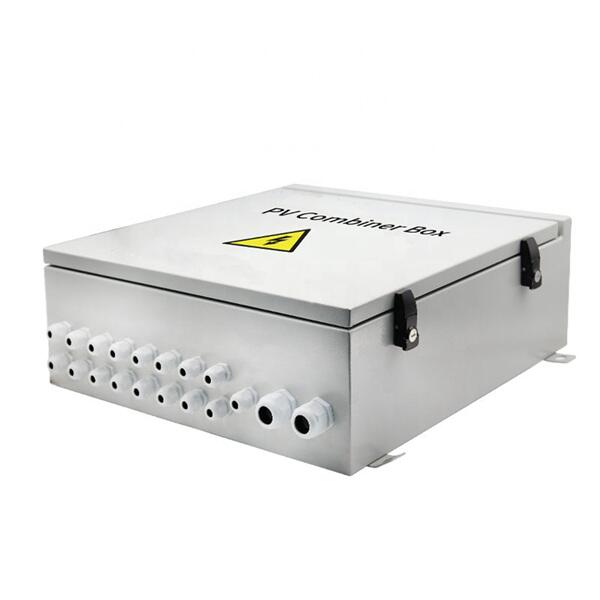

DC 1000V 1500V METAL SERIES COMBINER BOX FOR SOLAR SYSTEM APPLICATION

  • Features
  • Accessories

Benefits for you:

SPECIFICATION



1. High reliability

PV-specific fuses.
PV-specific surge protectors.
PV-specific DC breaker or rotary isolation switch.
Technical Specifications for Photovoltaic Confluence Equipment" CGC/GF 037:2014.

2. Strong adaptability

IP65 protection, waterproof, dustproof and UV resistant.
Strict high and low temperature test,suitable for a wide area.
The installation is simple, the system wiring is simplified, and the wiring is convenient.
The box is made of metal materials such as cold rolled steel plate.

3. Flexible configuration

Applicable to monocrystalline silicon,polycrystalline silicon,thin film pv moudles, can modify the current level of PV fuses,circuit breaker,rotary isolating switches.

4. Anti-Theft Lock Buckle

5. Water proof strip

6. Built-in earthing wire

7. Waterproof Terminal

8. Positive and negative poles into the wire

9. Mounting bracket


Technical parameters

DC 1000V 1500V METAL SERIES COMBINER BOX FOR SOLAR SYSTEM APPLICATION


Product NameDC combiner box
Model CodeMDB-PV
Rated Voltage1500V
Input16,20,24 strings
Output1 string
Temperature range-25~+60
Enclosure
IP Protection ClassIP65
MaterialsCold-rolled steel
SpecUV resistance and Flame retardant
DC switch
Rated Voltage1500V
Rated CurrentOptional
DC SPD
Max Operating Voltage1500V
Max Discharge Current40KA
Nominal discharge current20KA
DC Fuse
Rated Voltage1500V
Fuse32A 10×85MM
LED indicatorAvailable

DC 1000V 1500V METAL SERIES COMBINER BOX FOR SOLAR SYSTEM APPLICATION
