Benefits for you:

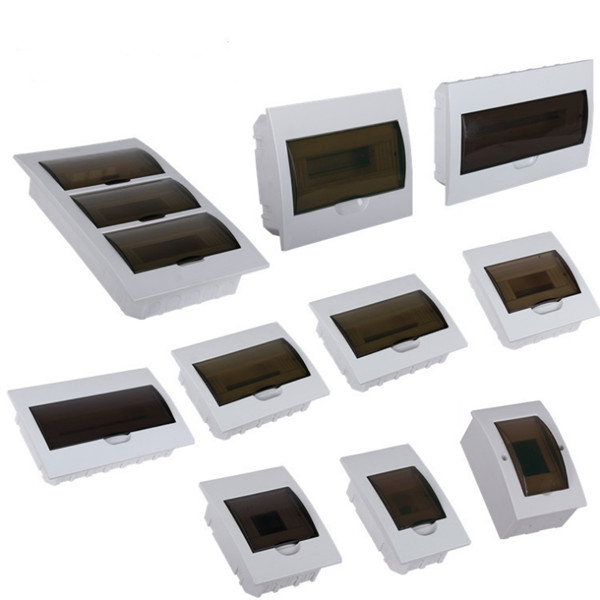

The new residential distribution box is mainly suitable for indoor, company, bus station, hotel, airport decoration or other public places decoration use.
The product is made of ABS plastic, and the cover is made of PS material.

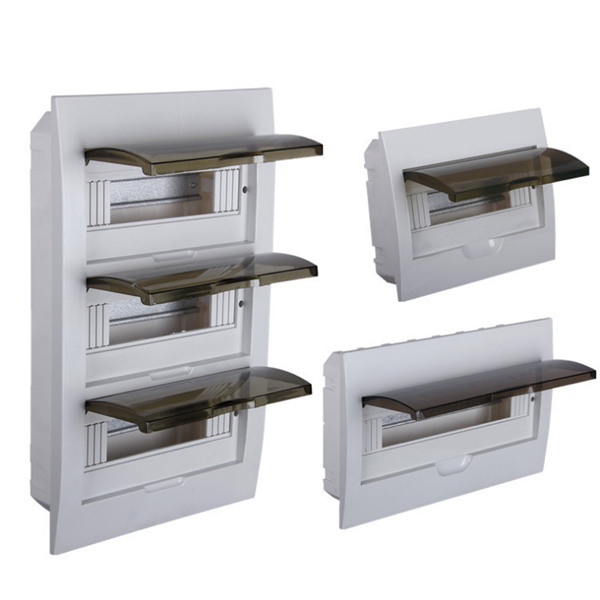

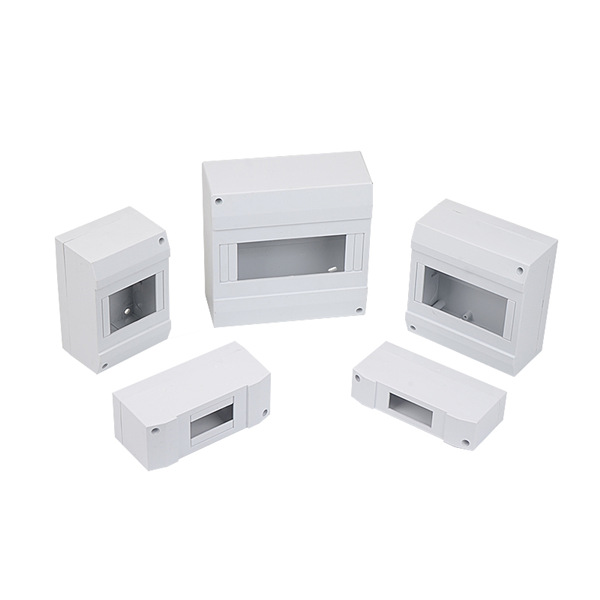

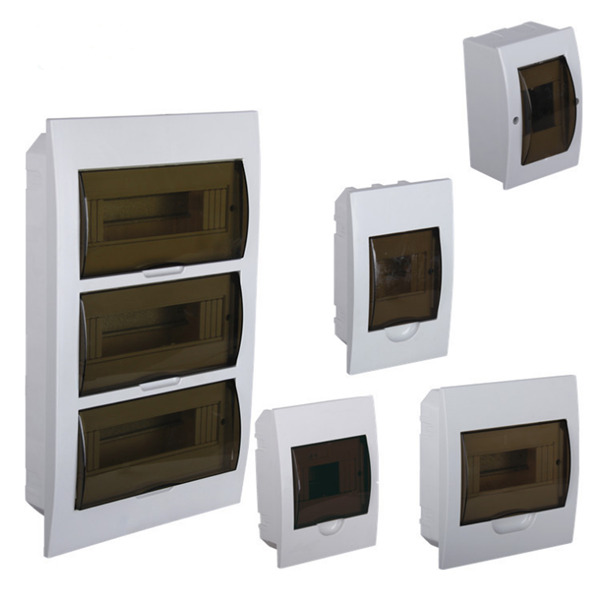

The installation method is divided into surface-mounted and flush-mounted.

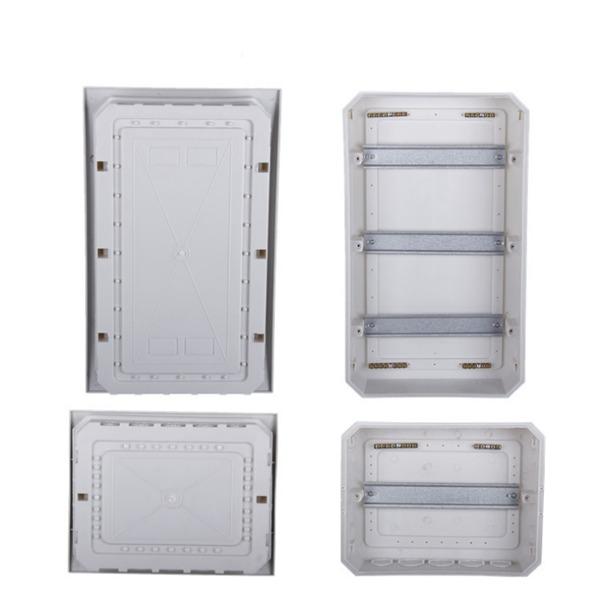

Equipped with guide rails and terminals inside, easy to use and install, the overall appearance is neat and generous, light weight, all white carton packaging, to ensure that the transportation is not damaged.
Technical parameters

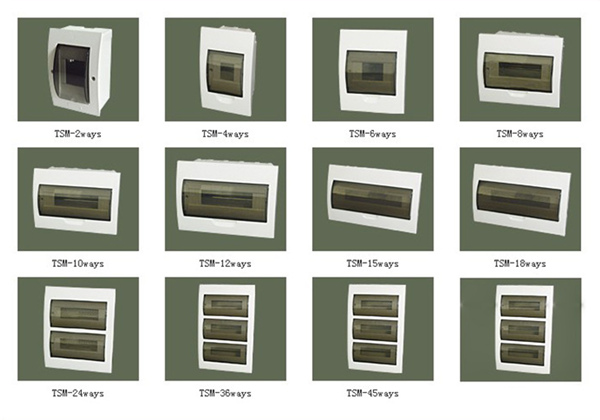

| Model | Dimensions(W×H×D)MM | QTY/CTN (PCS) | |
| Surface-Mounted Type | Flush-Mounted Type | ||
| TSM-2WAYS | 95×150×60 | 95×150×60 | 50 |
| TSM-4WAYS | 112×200×95 | 136×221×90 | 30 |
| TSM-6WAYS | 148×200×95 | 172×221×90 | 30 |
| TSM-8WAYS | 184×200×95 | 208×221×90 | 30 |
| TSM-10WAYS | 222×200×95 | 246×221×90 | 20 |
| TSM-12WAYS | 256×200×95 | 278×221×90 | 20 |
| TSM-15WAYS | 310×200×95 | 334×221×90 | 15 |
| TSM-18WAYS | 360×220×100 | 398×251×100 | 15 |
| TSM-24WAYS | 270×328×100 | 300×350×100 | 10 |
| TSM-36WAYS | 270×460×100 | 300×482×100 | 5 |
| TSM-45WAYS | 325×470×100 | 365×505×100 | 5 |
