Benefits for you:

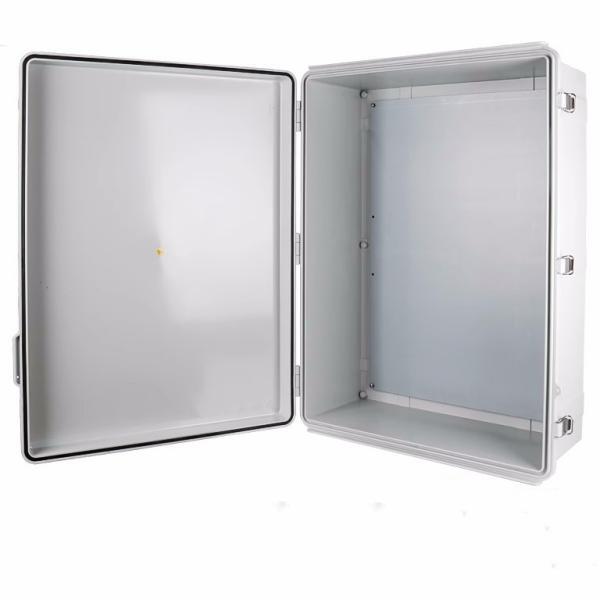

Waterproof Electrical Boxes(Hinge Type)
1. Material : Polycarbonate.
2. Bosses on internal base allow horizontal fixing of electrical components or connection of terminals ,etc into threaded brass.
3. Higher intensity, and more durable.
4. Better waterproof and Anti-corrosion performance,protect your instruments even under adverse environment.
5. Certain modification can be done according to your requirements. Such as drilling ,painting ,punching,silk-screen,printing and etc.

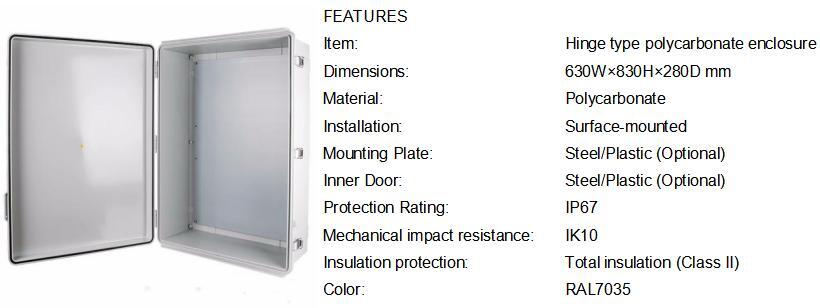

Technical parameters
| Short introduction: | Material: Polycarbonate, light gray, Lock type: SUS Buckle, surface mounted enclosure. |
| Flame retardant grade:V-0,According to UL 94 | |
| Cover fixing:SUS latch, Plastic hinge | |
| The fastening device is screwed into the bottom of the enclosures | |
| Insulation type: Total insulation (Class II) | |
| Enclosure protection level (IP):IP67 | |
| Body protection level (IK):IK10 | |
| Packaging Details | Standard export packing |
| Port | Ningbo/Shanghai China |

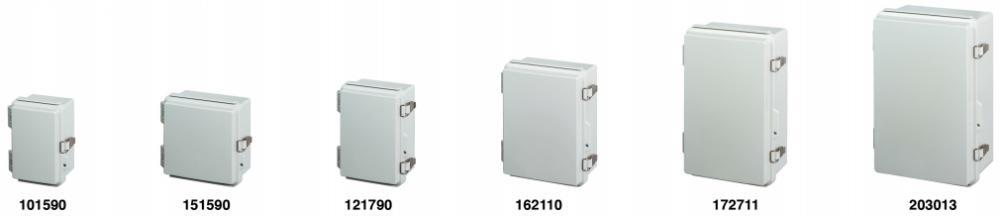

| Dimensions(mm) W×L×H | Dimensions(Inch) W×L×H | Solid Cover | Transparent Cover |
| 100×150x90 | 3.94"×5.91"x3.54" | 101509-B | 101509-A |
| 125×175x90 | 4.92"×6.89"x3.54" | 121709-B | 121709-A |
| 150×150x90 | 5.91"×5.91"x3.54" | 151509-B | 151509-A |
| 160×210x100 | 6.3×8.28"x3.94" | 162110-B | 162110-A |
| 175×275x110 | 6.89"×10.83"x4.33" | 172711-B | 172711-A |
| 200×300x130 | 7.87"×11.81"x5.12" | 203013-B | 203013-A |
| 250×350x150 | 9.84"×13.78"x5.91" | 253515-B | 253515-A |
| 330×430×180 | 13"×16.93"x7.09" | 334318-B | 334318-A |
| 430×530x200 | 16.93"×20.87"x7.87" | 435320-B | 435320-A |
| 430×630×230 | 16.93"×24.8"x9.06" | 436323-B | 436323-A |
| 530×730×250 | 20.87"×28.74"x9.84" | 537325-B | 537325-A |
| 630×830×280 | 24.8"×32.68"x11.02" | 638328-B | 638328-A |
Inner door and mounting plate are optional
