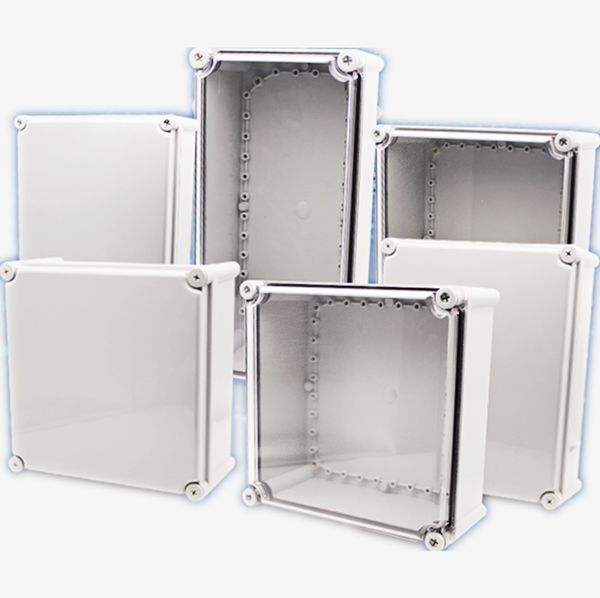

AG Series High-end plastic junction boxes

Inquire Now

Benefits for you:

1. Material: ABS, PC, or ABS+PC with flame retardant.

2. Bosses on internal base allow fixing PCB horizontally or connection of terminals, etc into threaded brass.

3. Higher intensity, and more durable.

4. Batter waterproof and Anti-corrosion performance, protect your instruments even under adverse environment.

5. Color and material can be changed as your requirement.

6. Certain modification can be done according to your requirements. Such as drilling, painting, punching, silk-screen, printing and etc.

7. Your design is welcome, the cost of mould can be free when order a large quantity.

Short introduction:	junction box with four ABS screws, material: ABS, light gray, lock type: nut, surface-mounted enclosure.
Product description	Color light gray
	Flame retardant grade V-0, According to UL 94
	Enclosure material ABS
	Cover fixing ABS screw cover
	The fastening device is screwed into the bottom of the housing
	Sealing material silicone
	Insulation type full insulation
	Enclosure protection level (IP) IP67
	Body protection level (IK) IK08
	Working temperature -40°C--90°C
Certification	CE, Rohs, IP67, IK08
Packaging Details	Standard export packing
Port	Ningbo/Shanghai China

Technical parameters

Model	Dimensions(mm) Width×Length×Height	Weight(PCS/Kg)	Qty(PCS/CTN)	Carton size (CM)	Gross weight (KG/CTN)
MD-AG-060905	65×95×55	0.12	160	39.5×34.5×47	18.44
MD-AG-081105	80×110×50	0.14	135	41×34×49.5	19.22
MD-AG-081107	80×110×70	0.16	90	41×34×45.5	15.1
MD-AG-081108	80×110×85	0.19	75	41×34×45.5	14.82
MD-AG-081307	80×130×70	0.19	140	53×41×54	25.6
MD-AG-081308	80×130×85	0.21	120	53×41×54	25.6
MD-AG-101007	100×100×75	0.18	140	51×41×55.5	25.9
MD-AG-101010	100×100×100	0.21	100	51×41×53	22
MD-AG-081807	80×180×70	0.24	90	51×41.5×44	22
MD-AG-082507	80×250×70	0.28	70	52×42×53	23.1
MD-AG-082508	80×250×85	0.33	60	52×42×53	22
MD-AG-121207	125×125×75	0.25	72	51×38.5×47.5	18.6
MD-AG-121210	125×125×100	0.31	60	51×38.5×52.5	18
MD-AG-121707	125×175×75	0.32	60	53.5×52.5×39.5	19.82
MD-AG-121710	125×175×100	0.38	48	53.5×52.5×42.5	19.14
MD-AG-141710	140×170×100	0.42	45	52×42×52.5	18.5
MD-AG-171710	175×175×100	0.49	36	53.5×53.5×42.5	18.3
MD-AG-152010	150×200×100	0.43	40	61×41×52.5	18.48
MD-AG-152013	150×200×130	0.51	32	61×41×54	17.38
MD-AG-202010	200×200×100	0.59	30	61×41×51.5	18.6
MD-AG-202013	200×200×130	0.67	24	81×41×53.5	18.6
MD-AG-152510	150×250×100	0.55	32	61×51×42.5	19.5
MD-AG-152513	150×250×130	0.65	24	61×51×41.5	16.5
MD-AG-192813	190×280×130	0.94	16	57×39×55.5	16.12

Accessories
