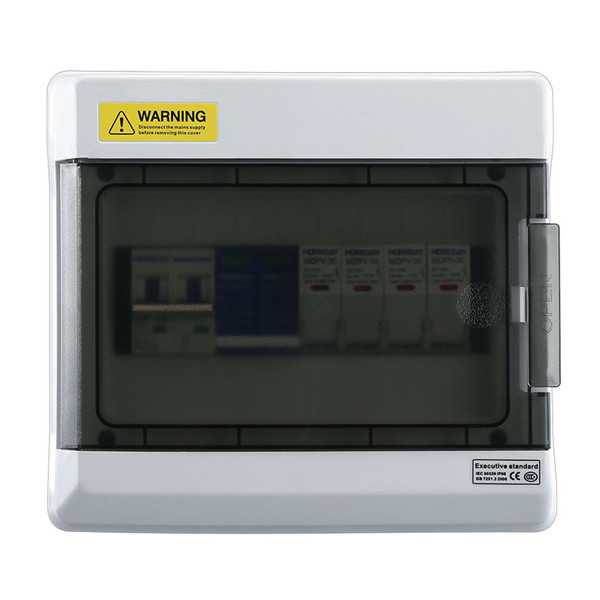

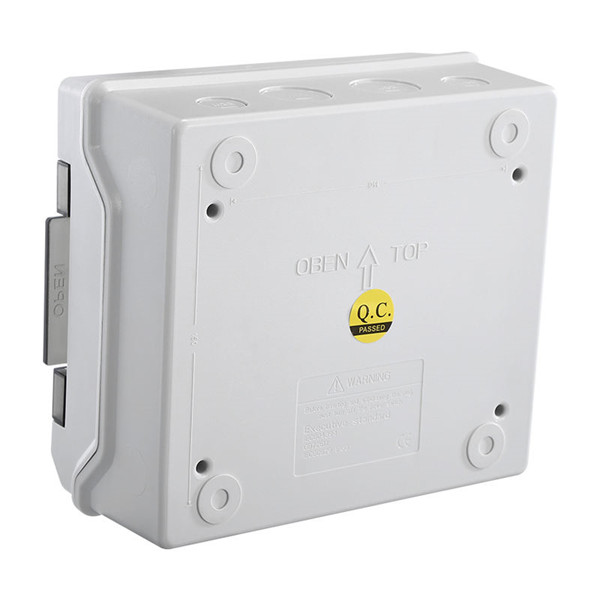

Solar Pv Combiner Box 2 Strings 1 output

  • Features
  • Accessories

Benefits for you:

SPECIFICATION

IP65 DC string box is designed for 2 strings PV system

Product NameDC combiner box
Model CodeMDB-PV2/1
Rated Voltage1000V
Input2strings
Output1string
Temperature range-25~+60
Enclosure
IP Protection ClassIP65
MaterialsPolycarbonate / ABS
SpecUV resistance and Flame retardant
DC switch
Rated Voltage1200V
Rated Current25A
DC SPD
Max Operating Voltage1000V
Max Discharge Current40KA
Nominal discharge current20KA
DC Fuse
Rated Voltage1000V
Fuse15A 10×38MM
LED indicatorAvailable


Technical parameters

Solar Pv Combiner Box 2 input 1 output

Solar Pv Combiner Box 2 input 1 output
