Benefits for you:

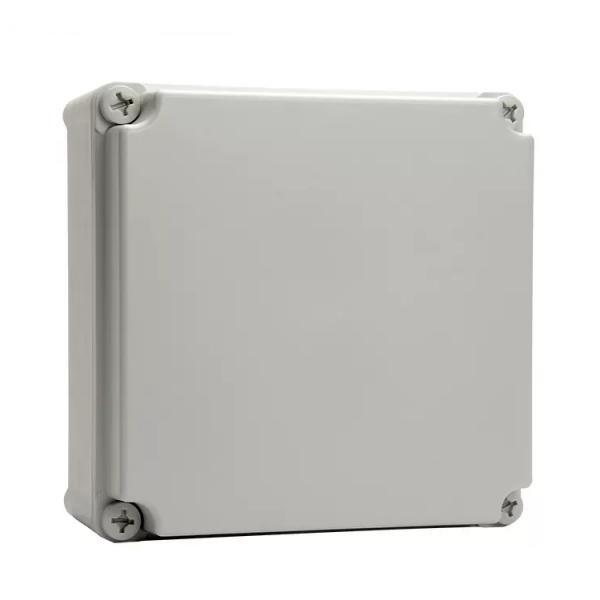

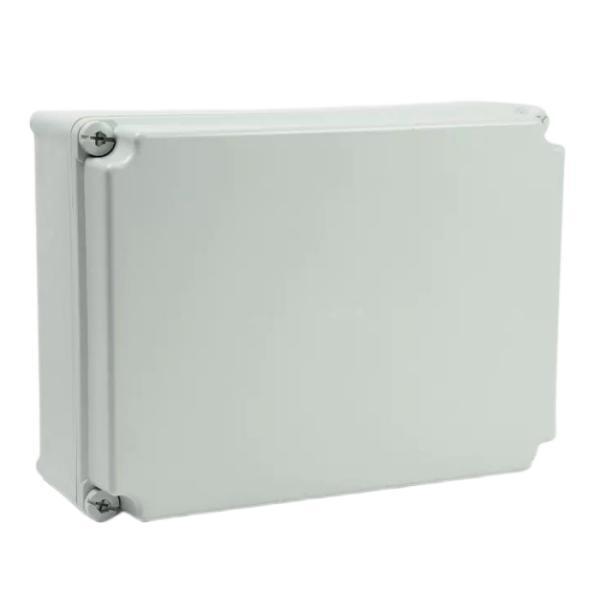

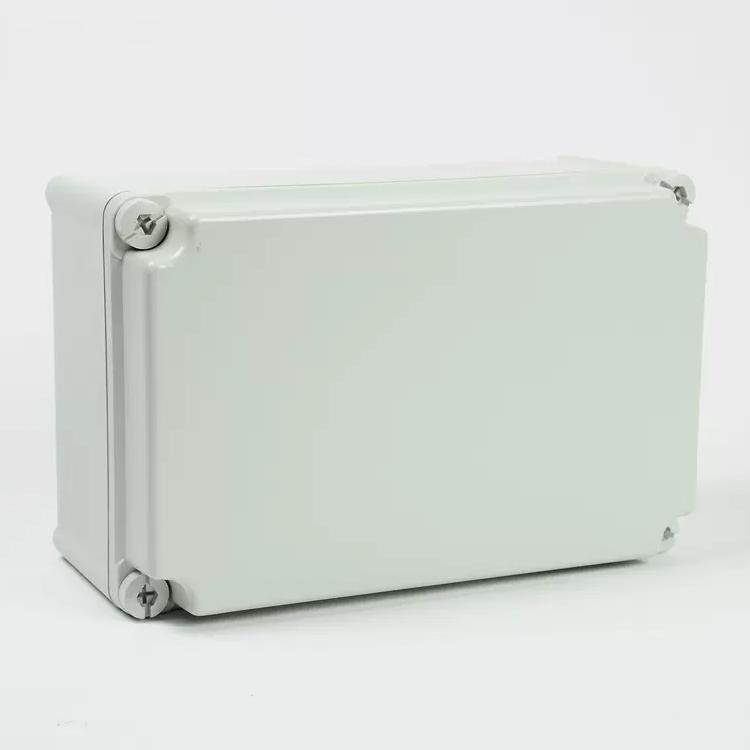

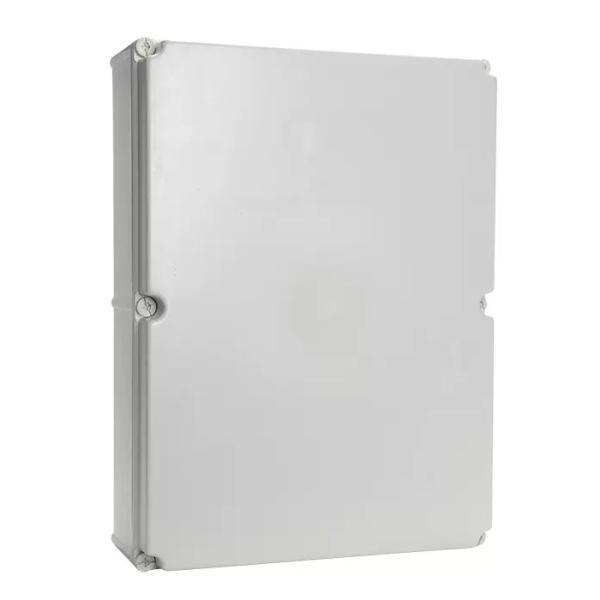

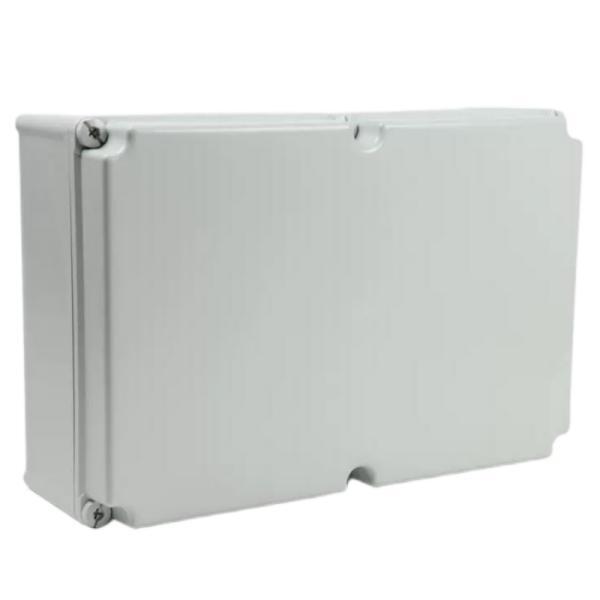

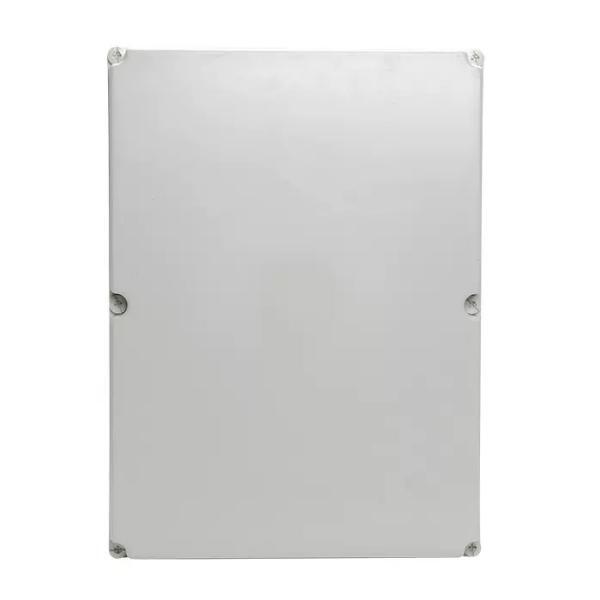

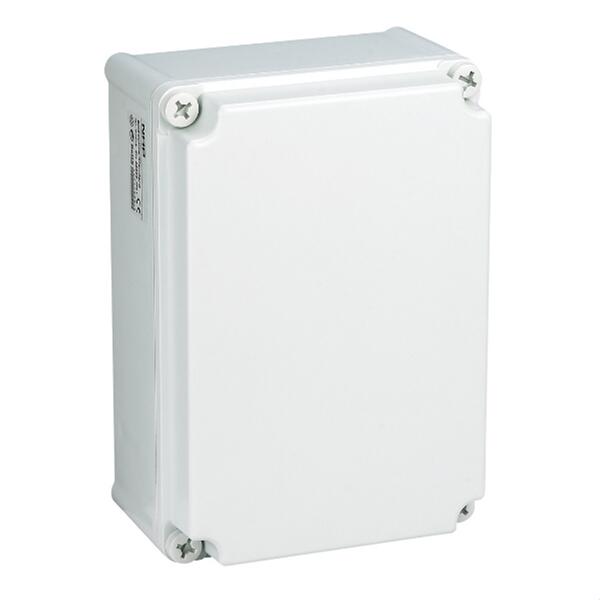

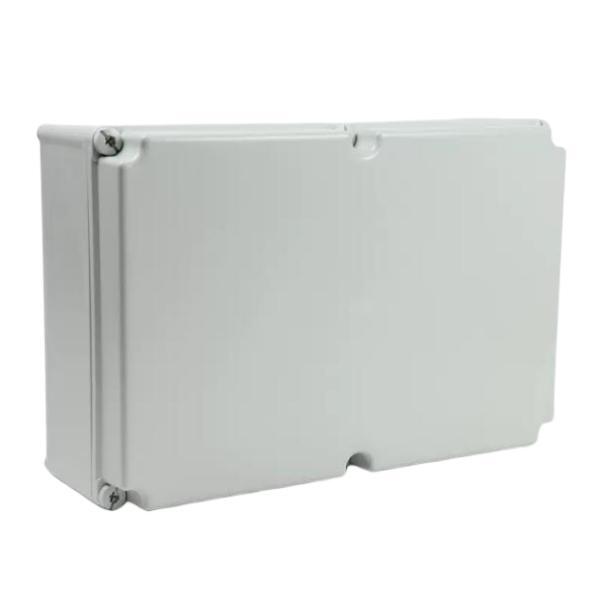

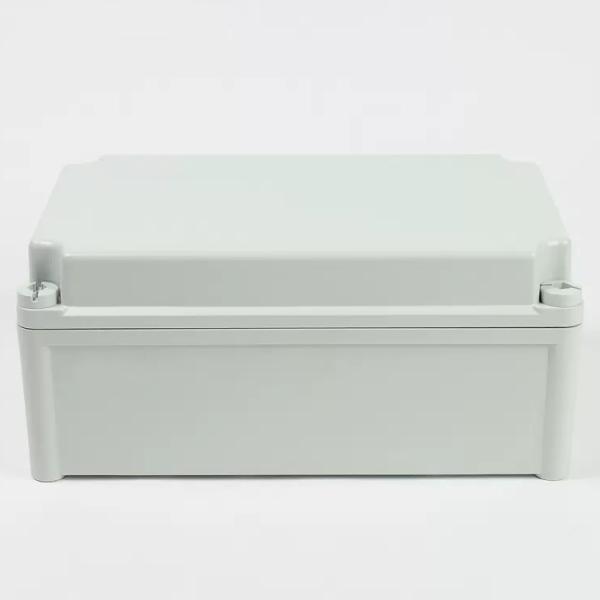

Plastic Electrical Enclosures
1. Material :ABS and PC alloy

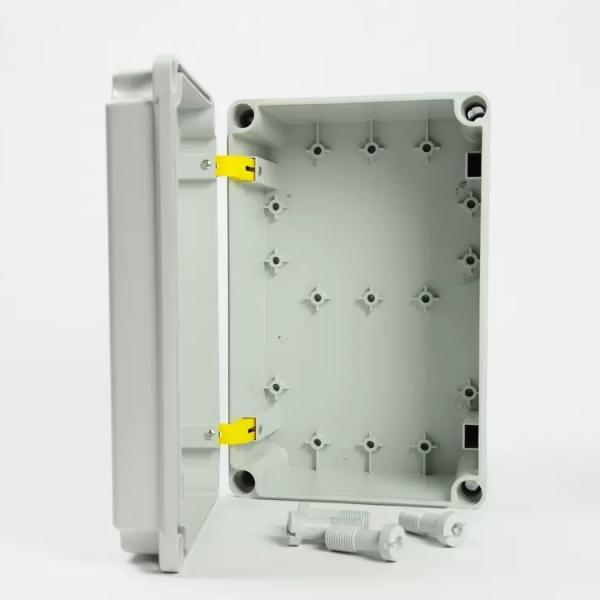

2. Bosses on internal base allow horizontal fixing of electrical components or connection of terminals ,etc into threaded brass.
3. Higher intensity, and more durable.
4. Better waterproof and Anti-corrosion performance,protect your instruments even under adverse environment.
5. Certain modification can be done according to your requirements. Such as drilling ,painting ,punching,silk-screen,printing and etc.
Technical parameters
Short introduction: | Material: ABS and PC alloy, light gray, Lock type: nut, surface mounted enclosures. |
Product description | Color:Light Gray |
Flame Retardant Grade:V-2,According to UL 94 | |
Cover Fixing:Screw Cover | |
The fastening device is screwed into the bottom of the enclosures | |
Insulation Type:Full Insulation | |
Enclosure Protection Level (IP):IP66 | |
Body Protection Level (IK):IK08 | |
Certification | CE,Rohs,IP66,IK08 |
Packaging Details | Standard Export Packing |
Port | Ningbo/Shanghai China |
Dimensions(mm) W×L×H | Dimensions(Inch) W×L×H | Model | Fastening Screws(pcs) |

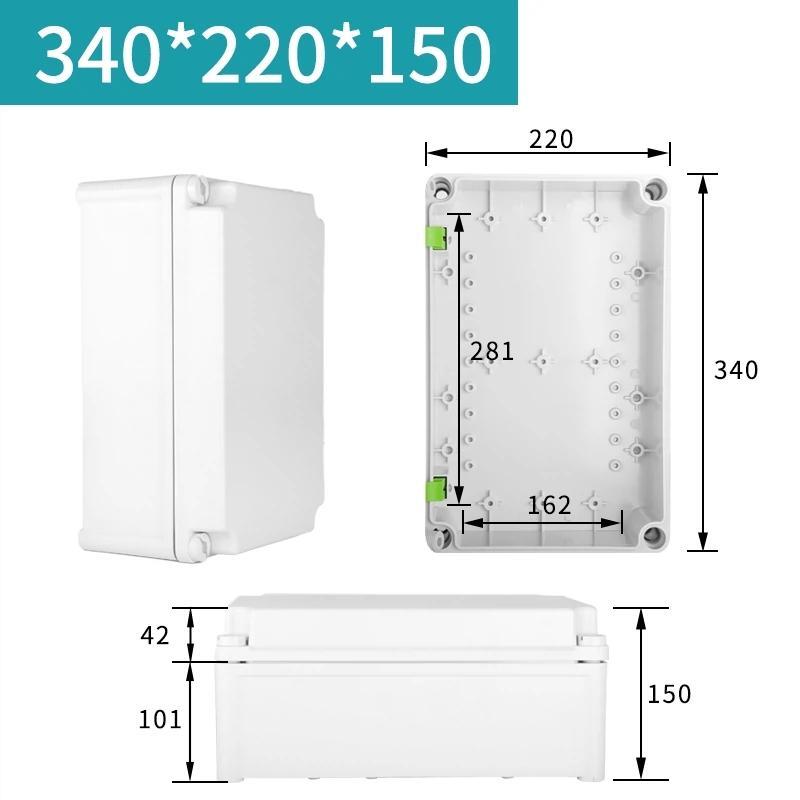

220×340x150 | 8.66"×13.39"x5.91" | MD-PC223415 | 4 |
230×330x160 | 9.06"×12.99"x6.3" | MD-PC233316 | 4 |
270×460x160 | 10.63"×18.11"x6.3" | MD-PC274616 | 4 |
280×280x160 | 11.02"×11.02"x6.3" | MD-PC282816 | 4 |
300×400x160 | 11.81"×15.75"x6.3" | MD-PC304016 | 4 |
300×520x160 | 11.81"×20.47"x6.3" | MD-PC305216 | 6 |
360×360x160 | 14.17"×14.17"x6.3" | MD-PC363616 | 6 |
360×540×180 | 14.17"×21.26"x7.09" | MD-PC365418 | 6 |
500×680x200 | 19.69"×26.77"x7.87" | MD-PC506820 | 6 |
600×800×200 | 23.62"×31.5"x7.87" | MD-PC608020 | 6 |
