Benefits for you:
Features

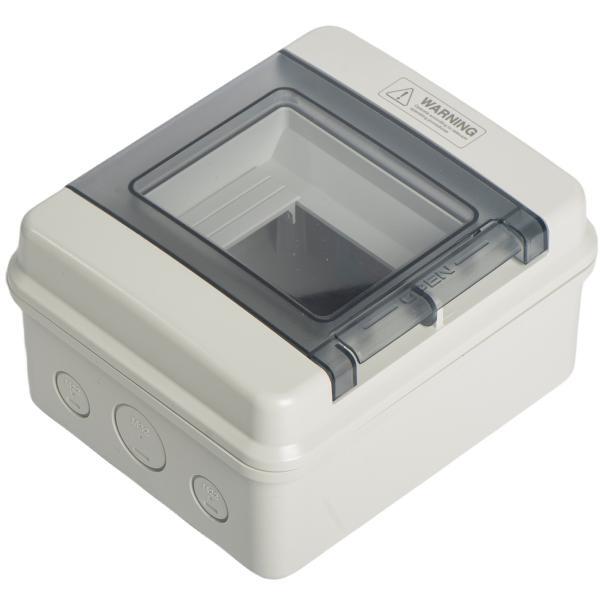

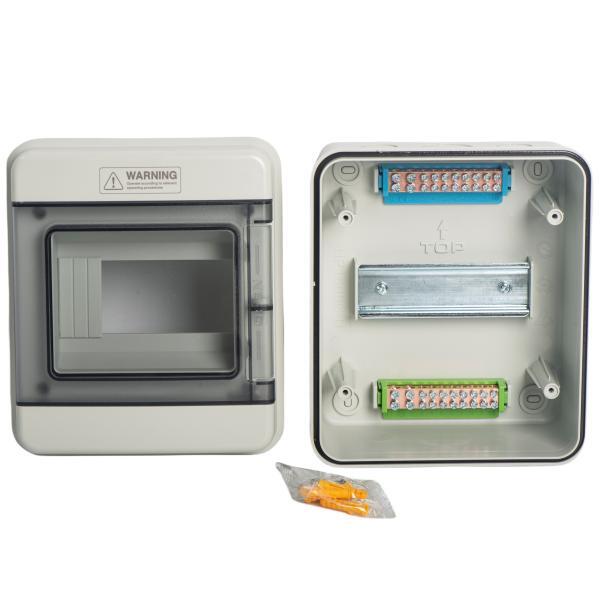

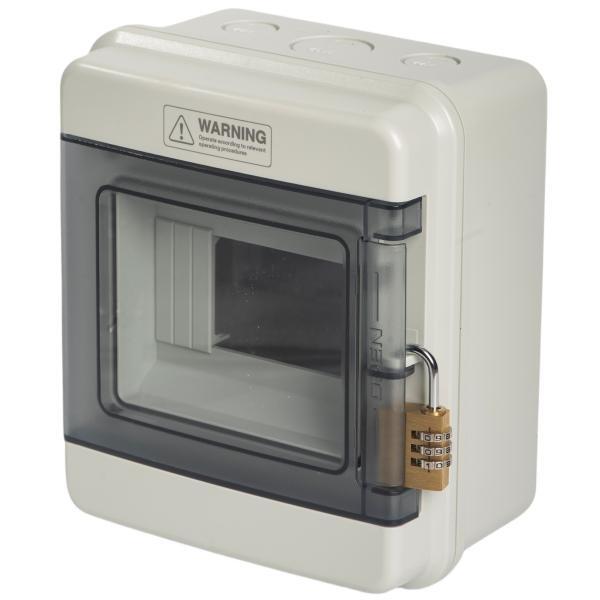

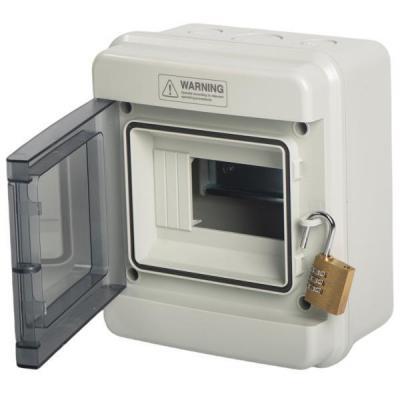

Material: The outdoor distribution box is made of high-quality PC/ABS engineering composite plastic, compared with traditional metal enclosures, it is 45% lighter and 60% more efficient to install.This plastic enclosures with QUV aging test and chemical corrosion and impact resistance (IK10), adaptable to wide temperature environment (-40℃ to +120℃), in line with industry IEC standards, and can provide more reliable and advanced solutions for your various applications.
Flame retardant grade UL94-V0: In response to the electrical safety needs of high fire risk scenarios, this flame retardant junction box uses UL94-V0 grade halogen-free flame retardant materials and achieves all-round fire protection through the following technical upgrades: extreme flame retardant performance, arc resistance design, toxicity control, engineering reliability, UV resistance, and this product complies with RoHS2.0 standards.
IP67 Rating: This waterproof junction box strictly follows the IEC 60529 standard to achieve IP67 protection level upgrade, and builds a full-dimensional environmental protection system through the following technical innovations, precision sealing architecture, extreme environment tolerance, and mechanical protection enhancement.
Solutions: This waterproof electrical box adopts modular system design and is suitable for various applications such as smart water systems, offshore wind power equipment, rail transportation, outdoor LED lighting, smart integration platforms, etc. Compatible with DIN rail, wall-mounted and pole-mounted.
Customized Service: Provide customized CNC openings, laser printing, UV digital printing,provide full-process digital customization services to achieve full-dimensional customized solutions from structural adaptation to surface treatment.
Technical parameters
| Product type | Polycarbonate Enclosure |
| Material | Polycarbonate(PC) |
| Color | RAL7035 |
| Type of lid | Screwed type lid |
| Mounting plate | Plastic or steel for optional |
| Sealing gasket | Polyurethane |
| lnsulation | Total insulation(Class II) |
| Degree of protection | IP67,IK10 |
| Flame retardant grade | UL94-V0 |
| Customization | Opening,UV digital printing,laser printing |
| Model | Dimensions(mm) W×L×D | Qty of Modules | Weight (PCS/Kg) | Qty (PCS/CTN) |
| 1504 | 107×212×92 | 4 Ways | 0.425 | 30 |
| 1506 | 165×200×100 | 6 Ways | 0.551 | 20 |
| 1509 | 219×200×100 | 9 Ways | 0.685 | 20 |
| 1512 | 273×230×110 | 12 Ways | 0.933 | 20 |
| 1518 | 381×230×110 | 18 Ways | 1.251 | 10 |
| 1524 | 273×380×110 | 24 Ways | 1.7 | 10 |
| 1536 | 381×380×110 | 36 Ways | 2.5 | 10 |
