Stainless Steel Boxes

  • Features
  • Accessories

Benefits for you:

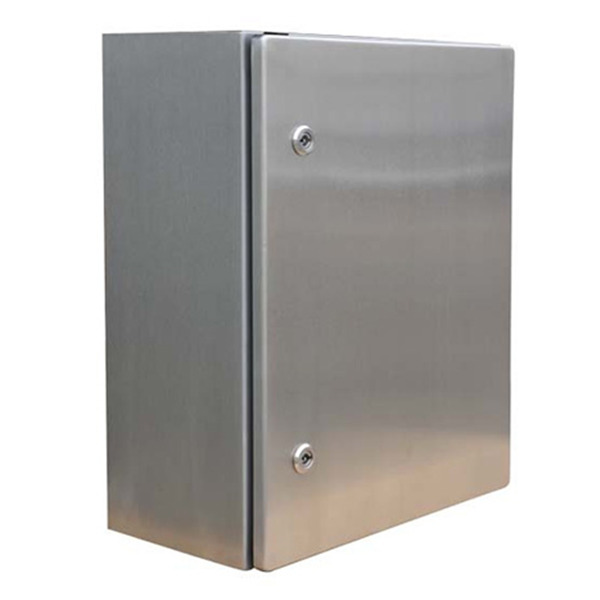

Stainless Steel Boxes

Material: 304 stainless steel plate.


Surface treatment: the box body and the front door are brushed, and the mounting plate is galvanized.


Protection level: IP65.


Standard configuration: door panel, box body, sealing strip, grounding kit, mounting plate, door lock.


Box body: 1.5mm Door panel: 2.0mm Mounting plate: 2.5mm.




Technical parameters

Features:


1.The sealing strip of foam plastic has excellent sealing performance, and the enclosed box body is guaranteed to reach the protection level of IP56.


2. The installation board made of galvanized steel sheet can also be used for wiring outside the box.


3. The multi-layer folding protection slot at the mouth of the box can play a supplementary reinforcement role, and at the same time can prevent dirt and water from entering the box when the lid is opened.


4. The door made of steel plate is equipped with a hinge that rotates 130°.


5. The grounding wire can be connected to the box body and door panel.


6. The lightweight lock series are extremely convenient to open and close.


7. The small holes and imprints on the back wall of the box can most directly fix the box on the wall, or it can be fixed with a wall hook.


ItemsModelDimensions (mm)
WHD
1MBAE203012200300120
2MBAE304021300400210
3MBAE405021400500210
4MBAE506021500600210
5MBAE606025600600250
6MBAE608025600800250
7MBAE6010256001000250
8MBAE6012306001200300


The dimensions and color of the enclosures can be customized.
