ABS Buckle Waterproof box, Plastic Electrical Boxes, waterproof enclosures, surface-mounted enclosure, Plastic Electronic Boxes
Benefits for you:
1. Material: ABS, PC, or ABS+PC with flame retardant.
2. Bosses on internal base allow fixing PCB horizontally or connection of terminals, etc into threaded brass.
3. Higher intensity, and more durable.
4. Batter waterproof and Anti-corrosion performance, protect your instruments even under adverse environment.
5. Color and material can be changed as your requirement.
6. Certain modification can be done according to your requirements. Such as drilling, painting, punching, silk-screen, printing and etc.
7. Your design is welcome, the cost of mould can be free when order a large quantity.

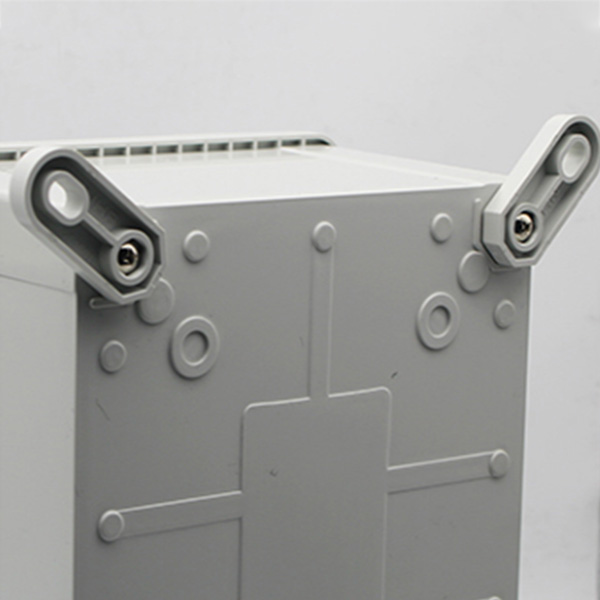

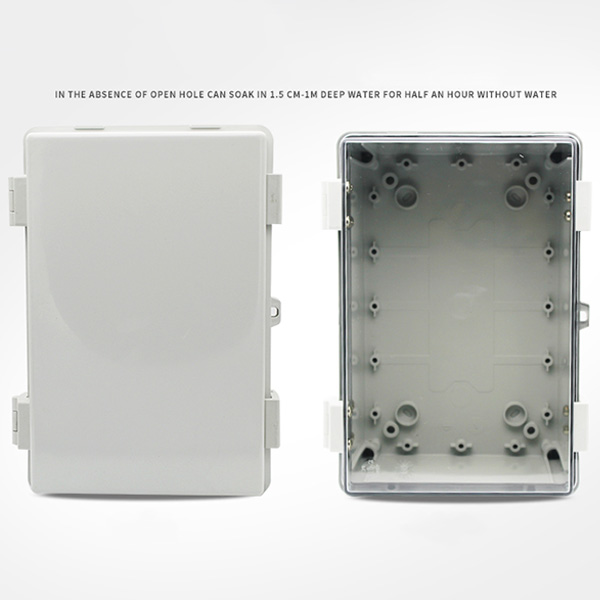

| Short introduction: | Plastic Electrical Boxes, color gray, lock type: Buckle, surface-mounted enclosure. Details: 1)Reinforced sealing ring, the reinforced seal ring is elastic, not easy to break, and will not be deformed or yellowed after long-term use. 2)Buckle design, buckle hinge design allows you to easily open the box. 3)Can be locked, the box can be locked to prevent theft and protect your equipment. 4)Bracket, Box mounting bracket for easy fixing on the wall. |
| Product description | Color gray |
| Body material ABS, Cover material ABS or PC | |
| Cover fixing ABS Buckle cover | |
| The fastening device is screwed into the bottom of the housing | |
| Sealing material Reinforced Polyamide Sealing Ring | |
| Insulation type full insulation | |
| Enclosure protection level (IP) IP67 | |
| Body protection level (IK) IK08 | |
| Working temperature -40°C--90°C | |
| Certification | CE, Rohs, IP67, IK08 |
| Packaging Details | Standard export packing |
| Port | Ningbo/Shanghai China |
Technical parameters
| Model | Dimensions(mm) Width×Length×Height | Model | Dimensions(mm) Width×Length×Height | Inner Door Width×Length&Material | |||
| Solid Cover | Clear Cover | Plastic | Metal | ||||
| MD-BG-203017 | 200×300×170 | MD-BT-203017 | 200×300×170 | 200×300 | 200×300 | ||
| MD-BG-304017 | 300×400×170 | MD-BT-304017 | 300×400×170 | 300×400 | 300×400 | ||
| MD-BG-405020 | 400×500×200 | MD-BT-405020 | 400×500×200 | 400×500 | 400×500 | ||
| MD-BG-406022 | 400×600×220 | MD-BT-406022 | 400×600×220 | 400×600 | 400×600 | ||
| MD-BG-506022 | 500×600×220 | MD-BT-506022 | 500×600×220 | 500×600 | 500×600 | ||
