Industrial Socket Boxes

Home / Products / Industrial Socket Boxes / Polycarbonate enclosures 330W×330Hx170D mm

    • Polycarbonate enclosures 330W×330Hx170D mm
    • Polycarbonate enclosures 330W×330Hx170D mm
    • Polycarbonate enclosures 330W×330Hx170D mm
  • Polycarbonate enclosures 330W×330Hx170D mm
  • Polycarbonate enclosures 330W×330Hx170D mm
  • Polycarbonate enclosures 330W×330Hx170D mm

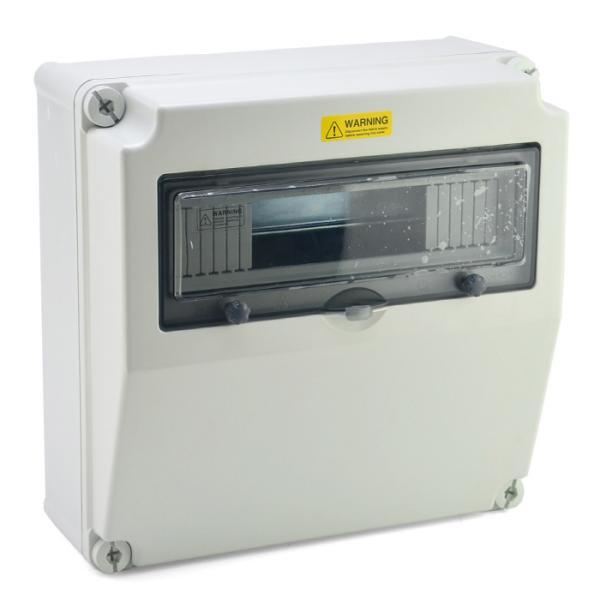

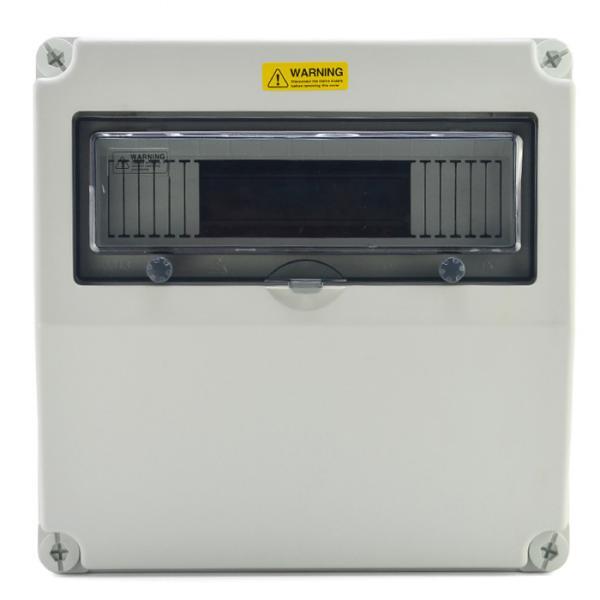

Polycarbonate enclosures 330W×330Hx170D mm

  • Features
  • Accessories

Benefits for you:

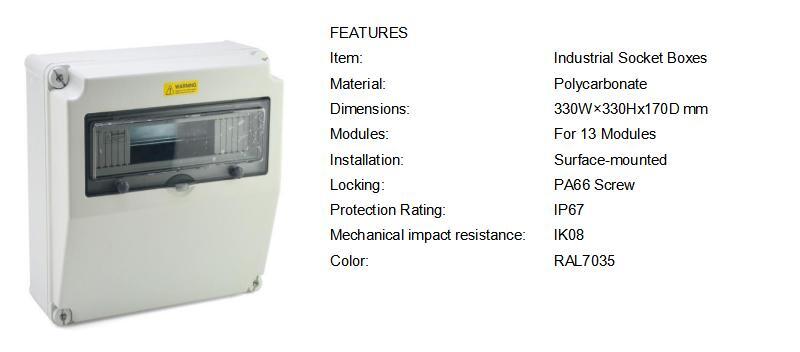

Polycarbonate enclosures 330W×330Hx170D mm


Technical parameters


Dimensions(mm)
W×L×H
Dimensions(Inch)
W×L×H

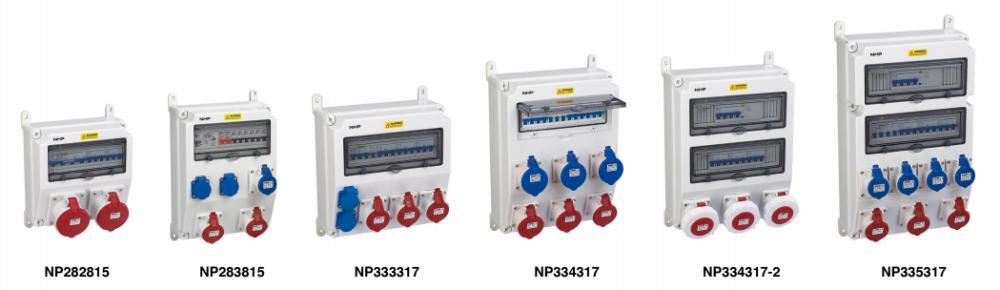

Q'ty for modulesModelFastening Screws
120×240x1204.72"×9.45"x4.72"41224124
170×260x1407"×10.24"x5.51"81726144
280×280x15011.02"×11.02"x5.91"122828154
280×380x15011.02"×14.96"x5.91"122838154
330×330x17012.99"×12.99"x6.69"133333174
330×430x17012.99"×16.93"x6.69"13334317 (1 Row)4
330×430x17012.99"×16.93"x6.69"26334317-2 (2 Row)4
330×530x17012.99"×20.87"x6.69"263353176

330W×330Hx170D mm
