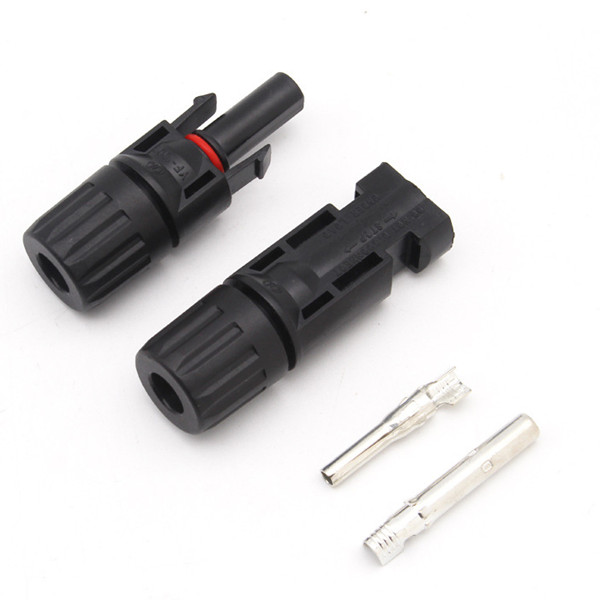

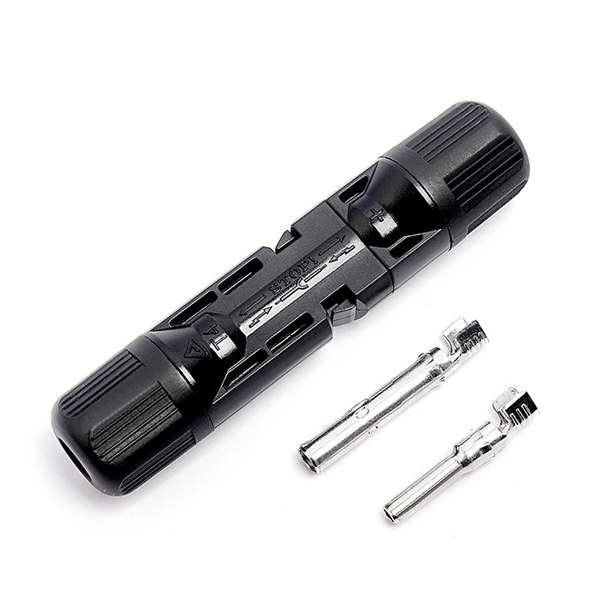

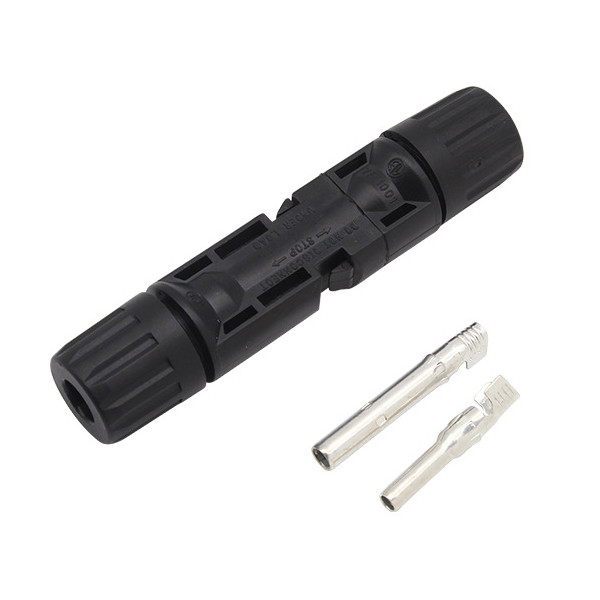

1000V DC Solar Connector PV Solar Panel Cable connector

  • Features
  • Accessories

Benefits for you:

Ip67 Waterproof Seal Micro Solar Panel Cable Connector


ModelMD-MC4 pv connector
Rated voltage1000V DC
Rated impulse voltage6kV
AmbienT temp, range-40°C~+125°C
Degree of protection(mated)IP67
Protection classII
Contact resistance of plug connectors≤5mΩ
Contact materialCopper Alloy.tin plated
Insulation materialPC/PPO
Locking systemSnap-in
Flame classUL-94-V0

Product Details

1) IP67 Water-Proof IP Rating

2) Easy to assemble,Simple on-site processing.

3) 100% new PPO Material

4) Insulation Component

5) Copper material ,Tinned appearance

6) Low resistance ,corrosion resistance

7) Beautiful appearance ,Ce and CCC certification

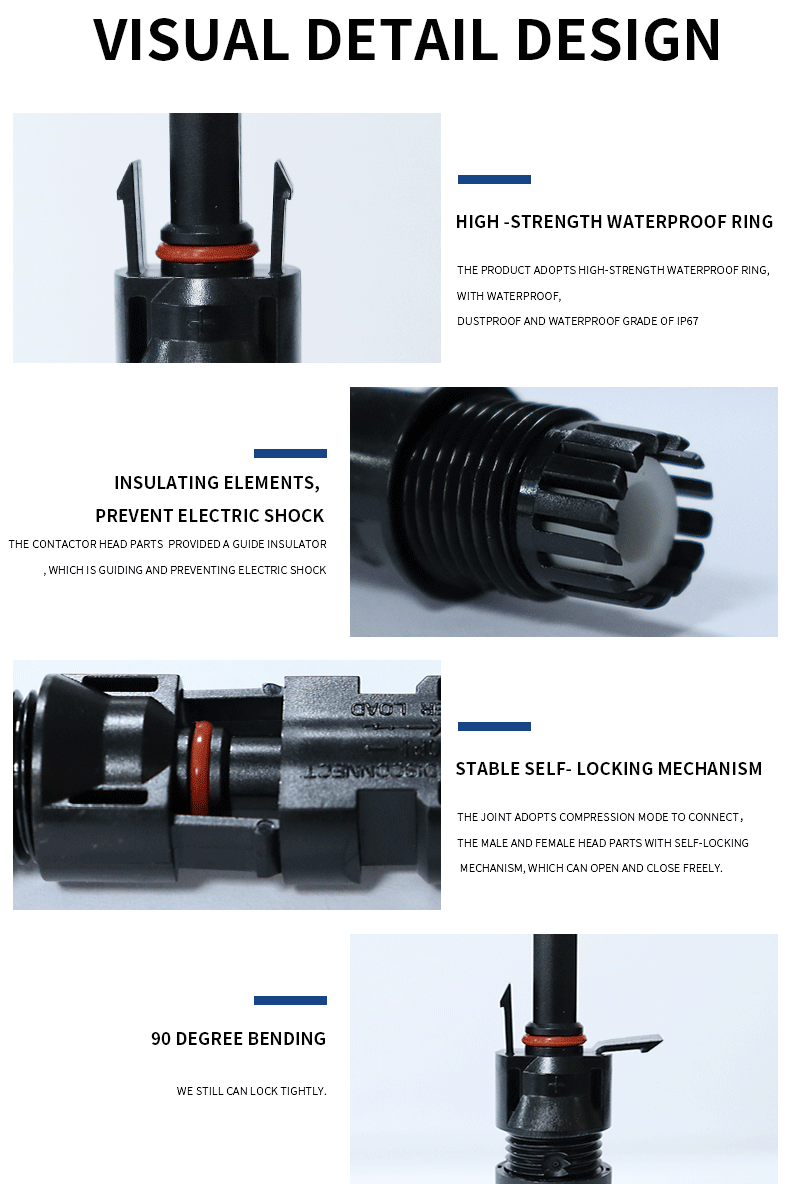

8) High current carrying capacity. INSULATING ELEMENTS, PREVENT ELECTRIC SHOCK The contactor head parts provided a guide insulator,which is guiding and preventing electric shock

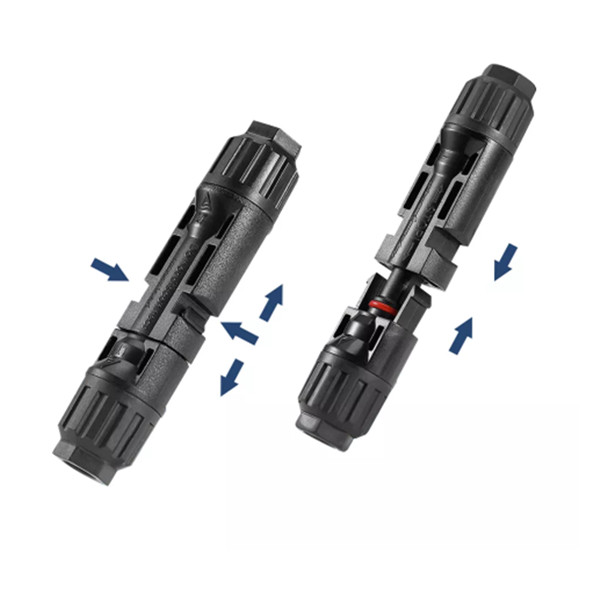

9) STABLE SELF- LOCKING MECHANISM The joint adopts compression mode to connect, the male and female head parts with self-locking mechanism, which can open and close freely.


Technical parameters

1000V DC Solar Connector PV Solar Panel Cable connector

1000V DC Solar Connector PV Solar Panel Cable connector

1000V DC Solar Connector PV Solar Panel Cable connector

1000V DC Solar Connector PV Solar Panel Cable connector

1000V DC Solar Connector PV Solar Panel Cable connector
