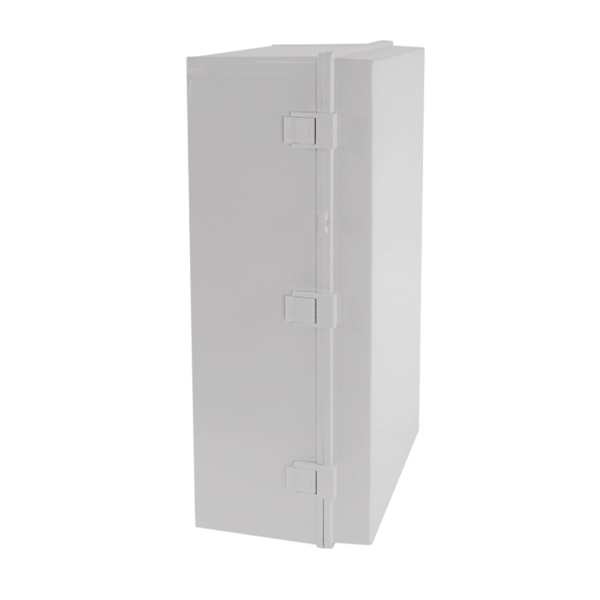

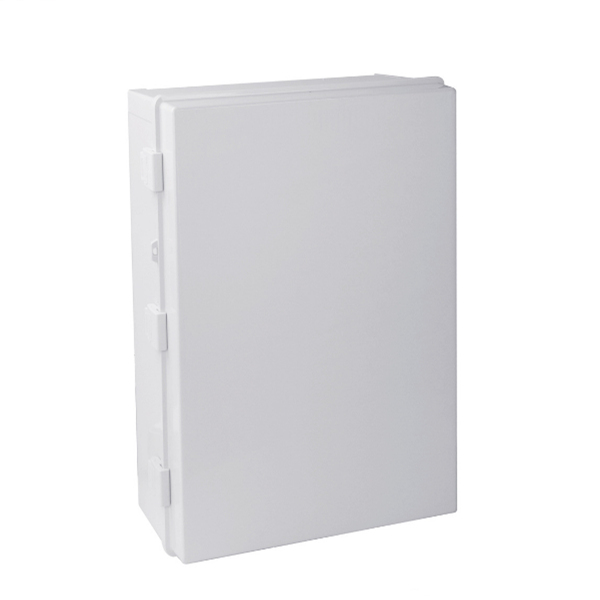

400×600×220(15.75"×23.62"x8.66")

  • Features

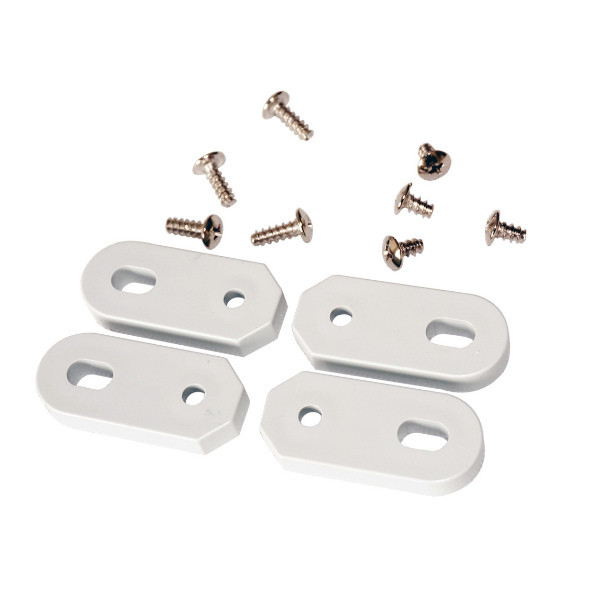

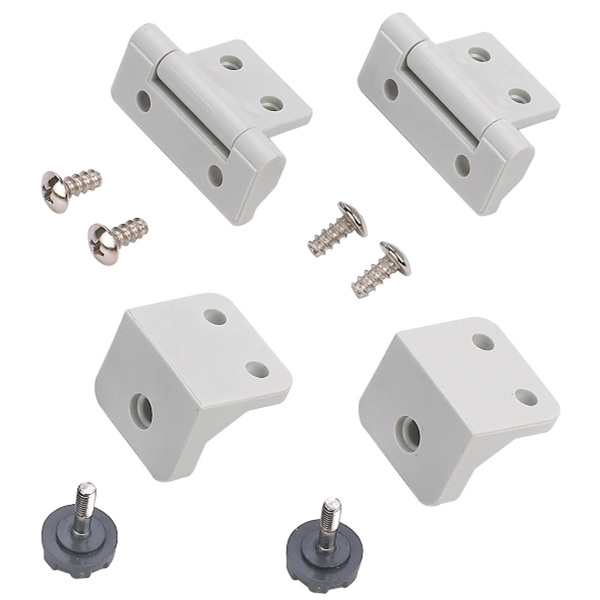

  • Accessories

Benefits for you:

Waterproof Electrical Boxes(Hinge Type)


1. Material :ABS and PC alloy materials.

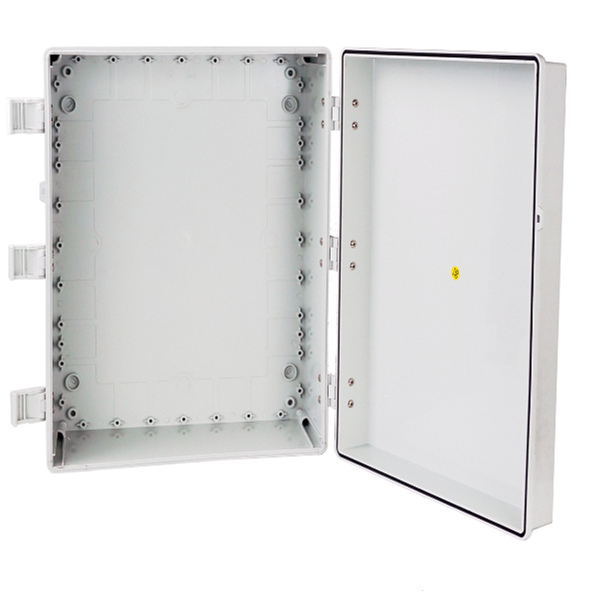

2. Bosses on internal base allow horizontal fixing of electrical components or connection of terminals ,etc into threaded brass.


3. Higher intensity, and more durable.


4. Better waterproof and Anti-corrosion performance,protect your instruments even under adverse environment.


5. Certain modification can be done according to your requirements. Such as drilling ,painting ,punching,silk-screen,printing and etc.


Technical parameters

Short introduction:Material:ABS and PC alloy materials., light gray,
Lock type: Buckle, surface mounted enclosure.
Flame retardant grade:V-0,According to UL 94
Cover fixing:Plastic latch, Plastic hinge
The fastening device is screwed into the bottom of the enclosures
Insulation type:Full Insulation
Enclosure protection level (IP):IP66
Body protection level (IK):IK08
Packaging DetailsStandard export packing
PortNingbo/Shanghai China

400×600×220(15.75"×23.62"x8.66")

400×600×220(15.75"×23.62"x8.66")

400×600×220(15.75"×23.62"x8.66")

400×600×220(15.75"×23.62"x8.66")

400×600×220(15.75"×23.62"x8.66")

Dimensions(mm)
W×L×H
Dimensions(Inch)
W×L×H
Solid CoverTransparent Cover
100×150x703.94"×5.91"x2.76"MD-MG101507MD-MT101507
100×200x703.94"×7.87"x2.76"MD-MG102007MD-MT102007
150×150x905.91"×5.91"x3.54"MD-MG151509MD-MT151509
170×220x1106.69"×8.66"x4.33"MD-MG172211MD-MT172211
190×290x1407.48"×11.42"x5.51"MD-MG192914MD-MT192914
200×300x1707.87"×11.81"x6.69"MD-MG203017MD-MT203017
290×390x16011.42"×15.35"x6.3"MD-MG293916MD-MT293916
300×400×17011.81"×15.75"x6.69"MD-MG304017MD-MT304017
330×330x13012.99"×12.99"x5.12"MD-MG333313MD-MT333313
400×500×20015.75"×19.69"x7.87"MD-MG405020MD-MT405020
400×600×22015.75"×23.62"x8.66"MD-MG406022MD-MT406022
